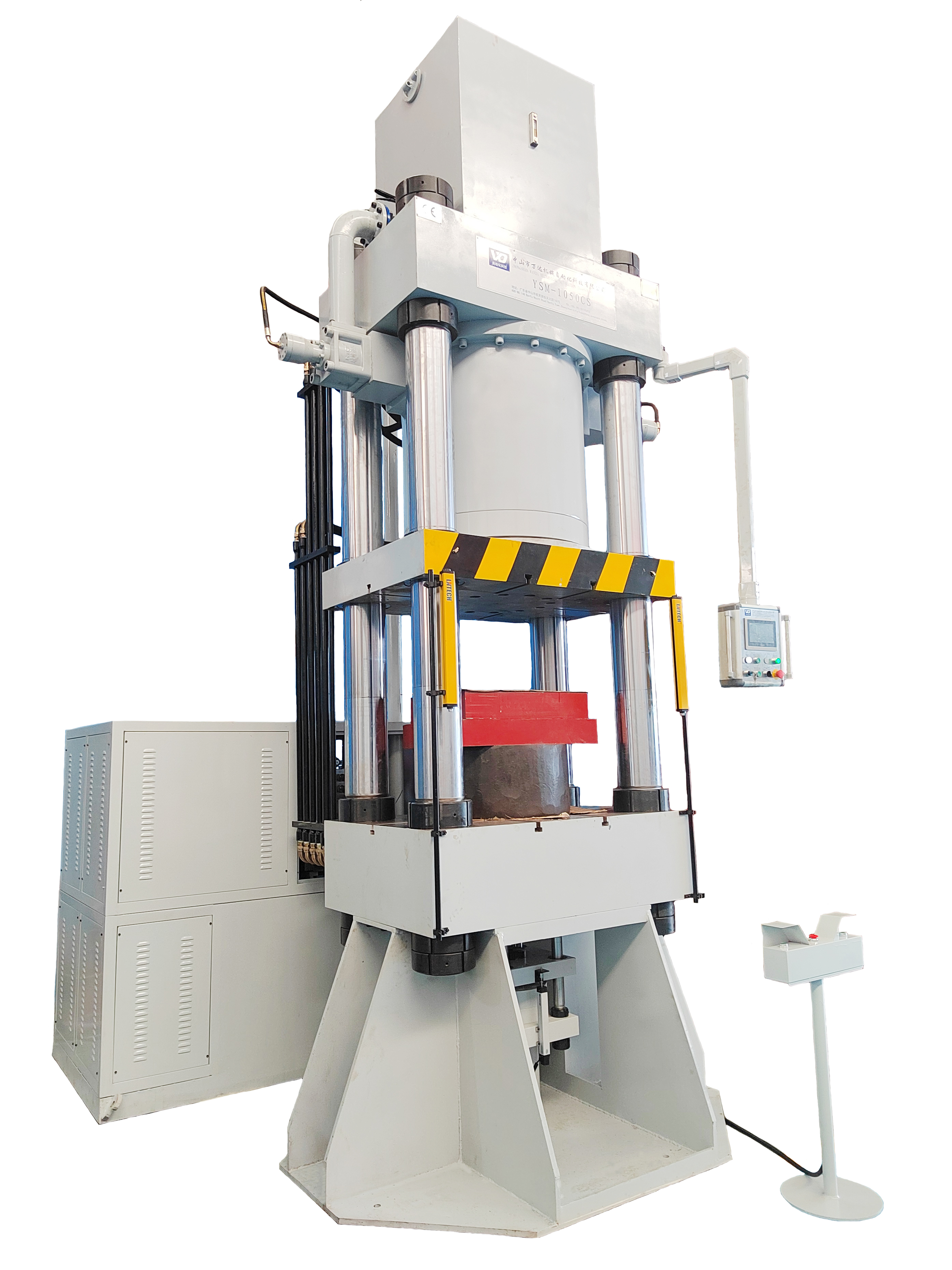

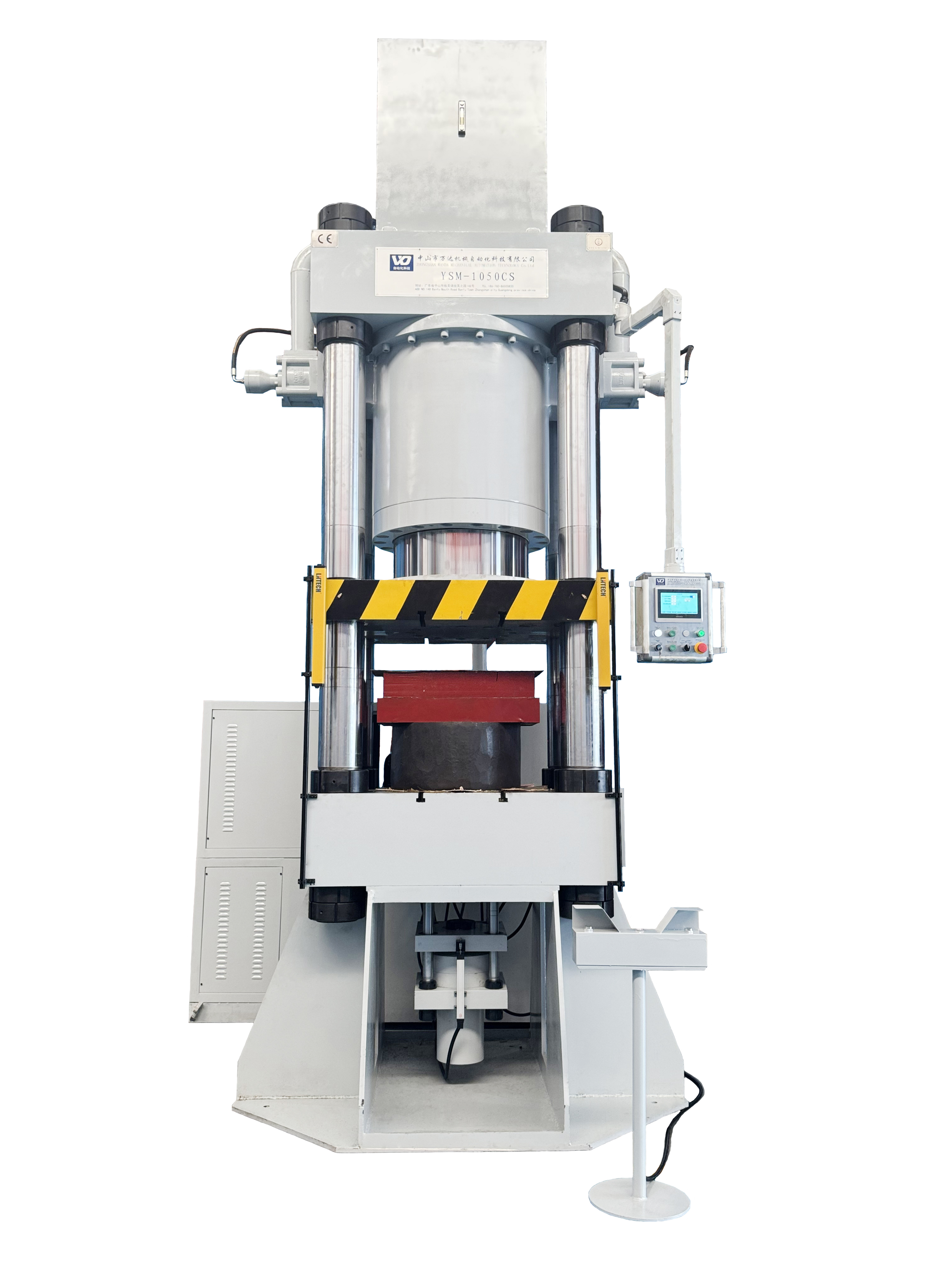

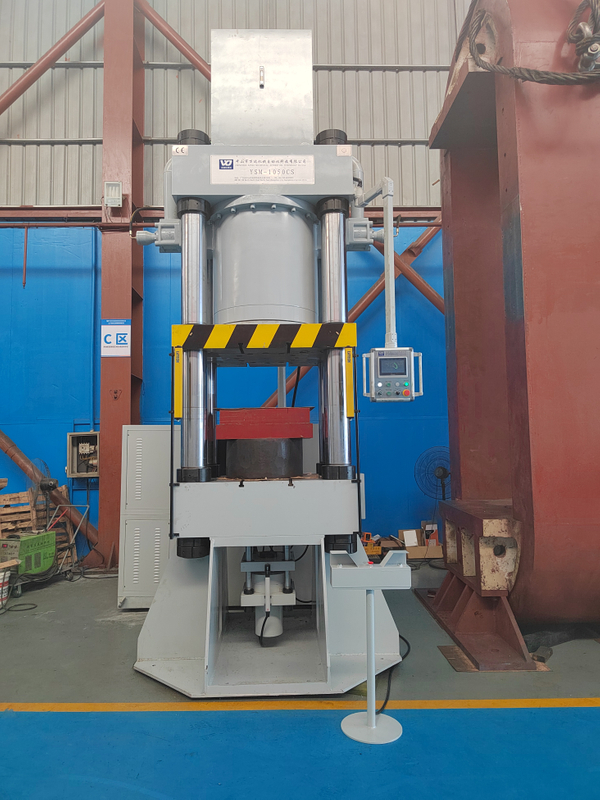

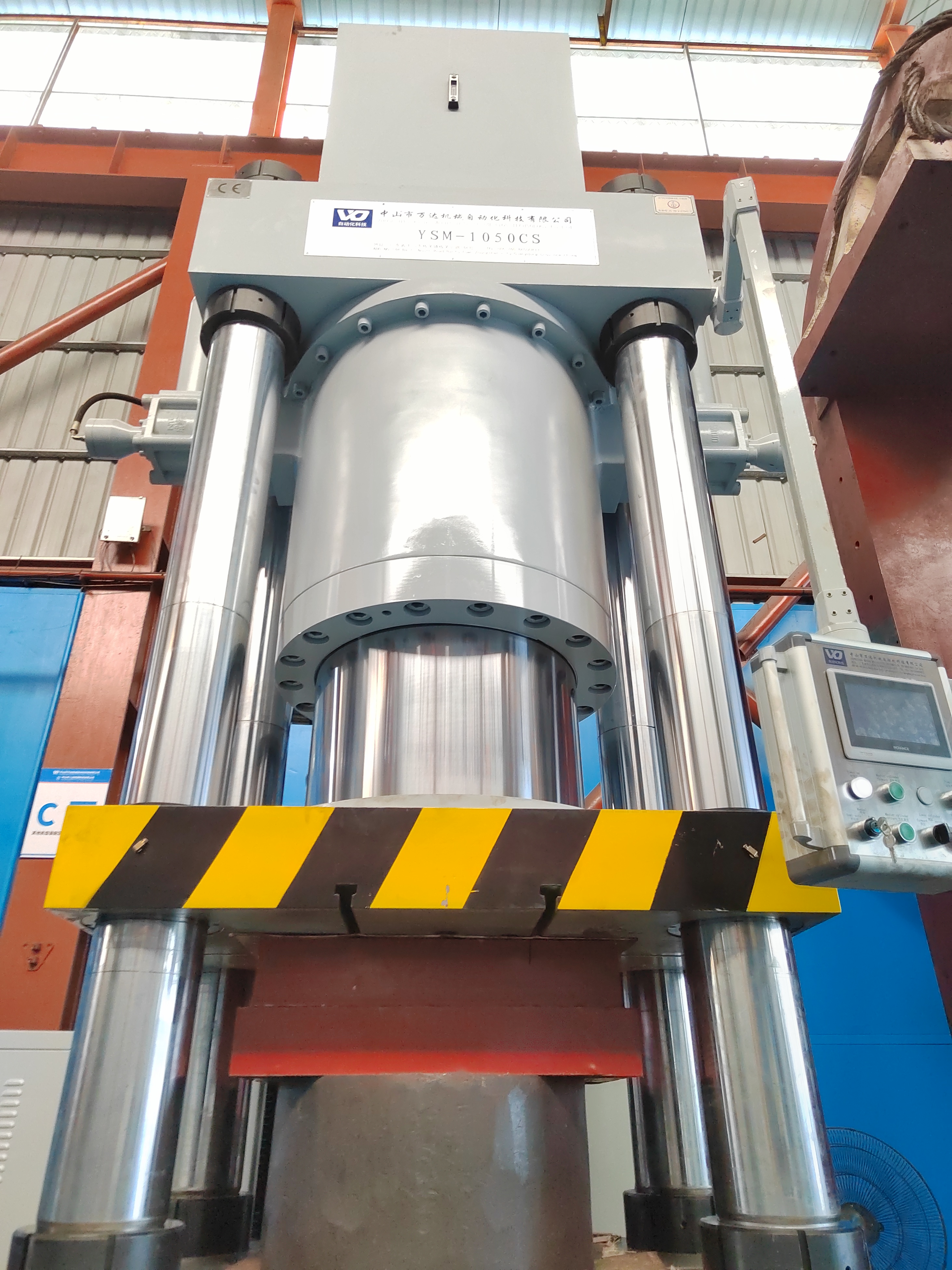

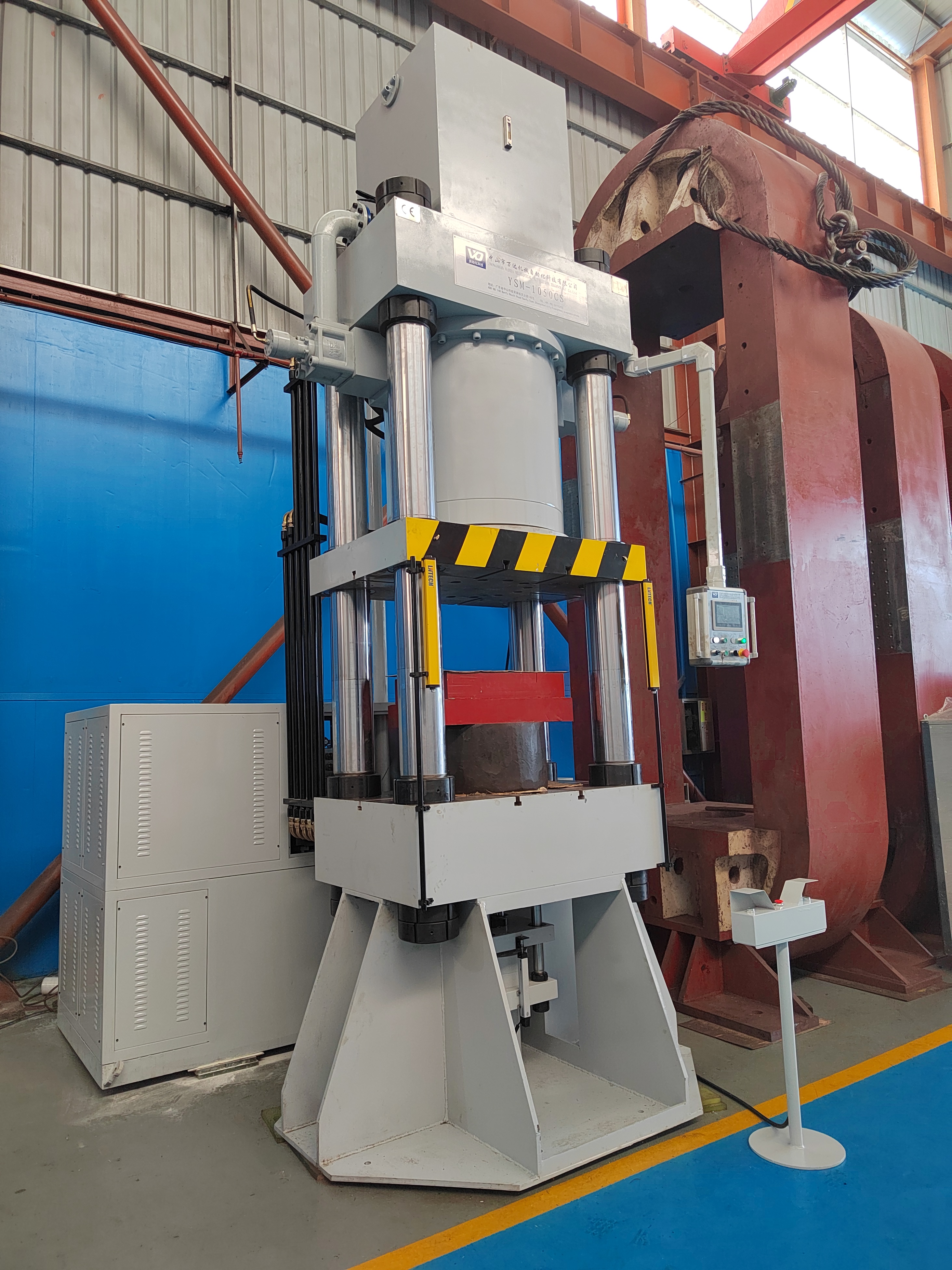

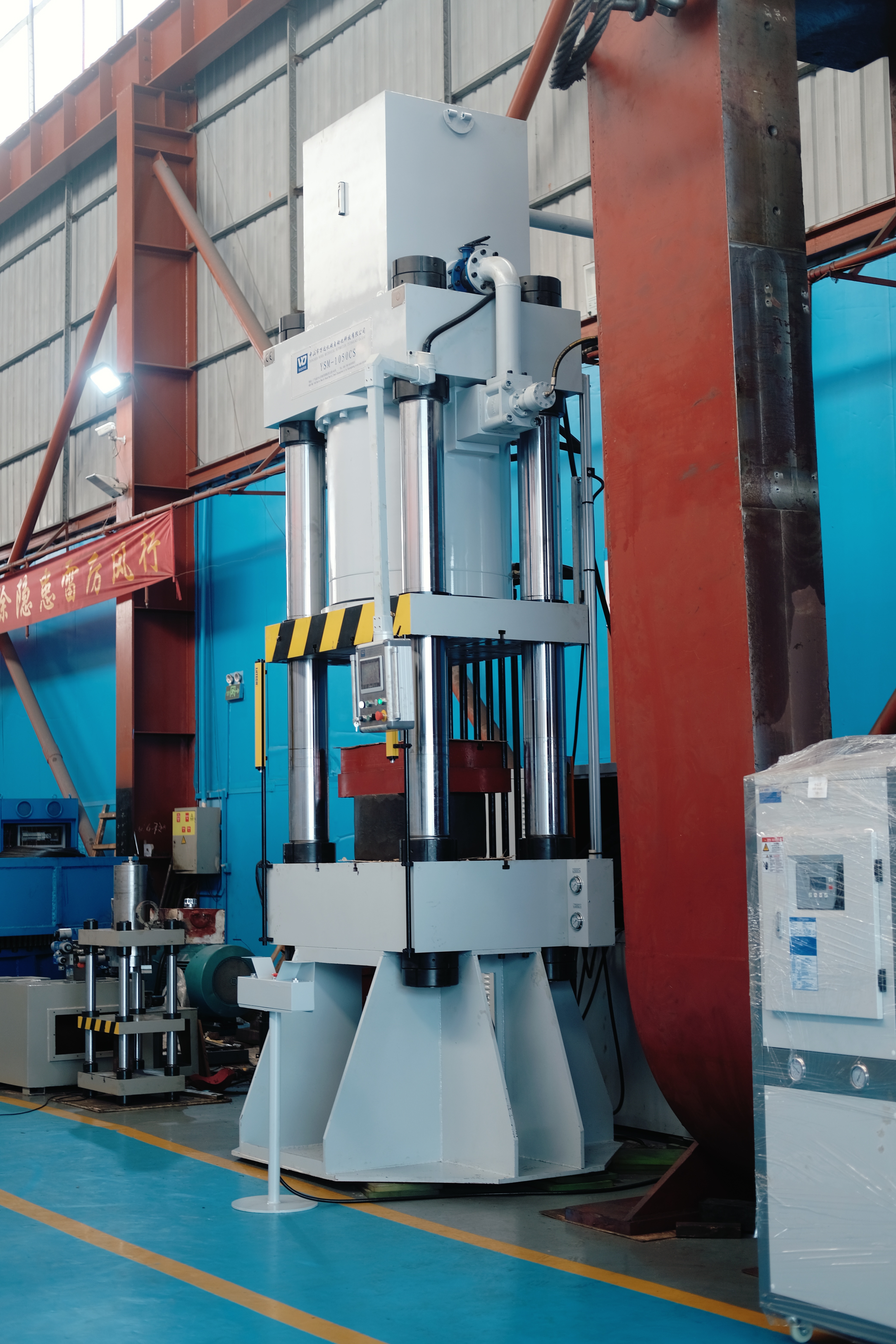

YSM-1050CS伺服精密數控液壓機

一、機器用途、工作條件Machine usage and working conditions:

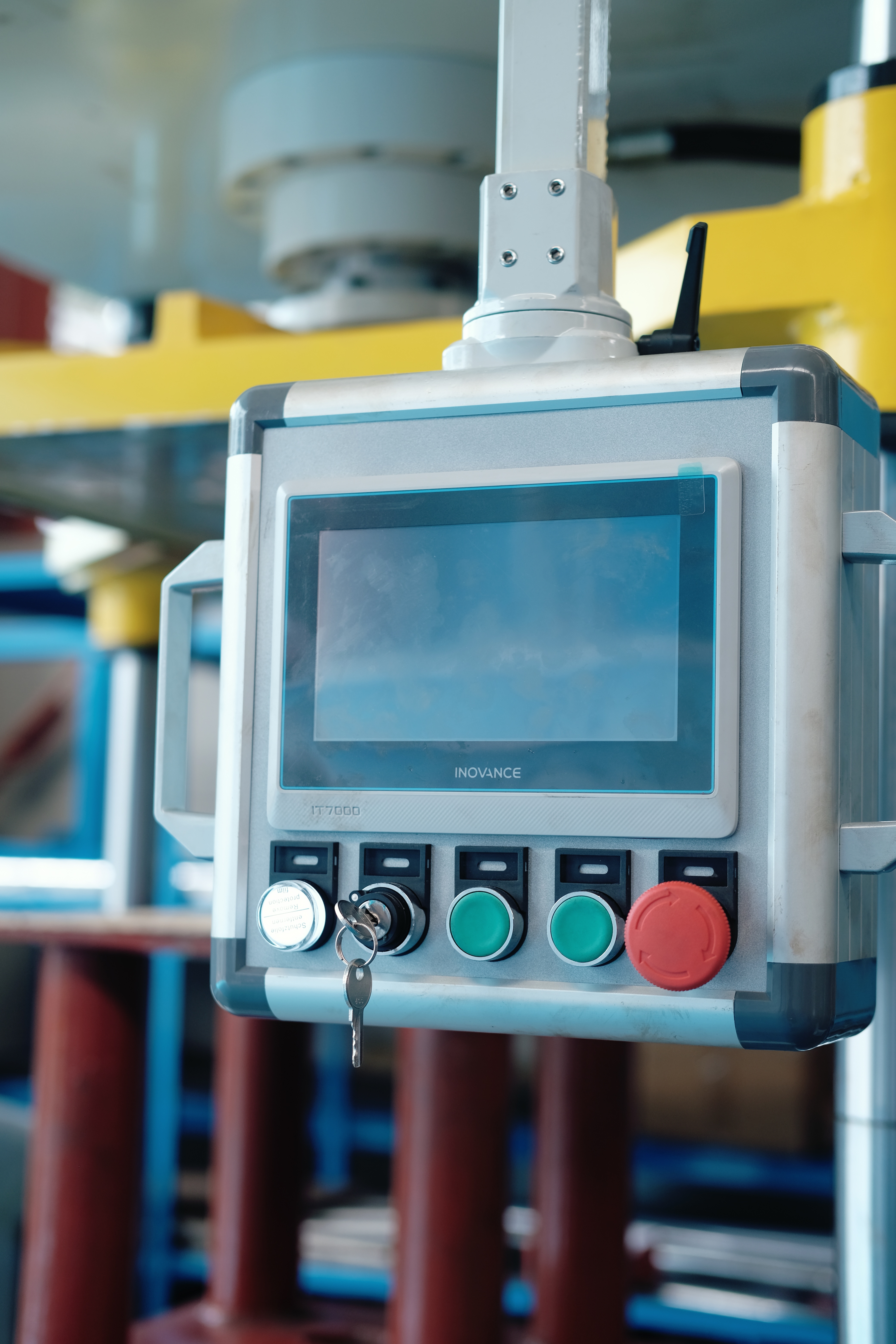

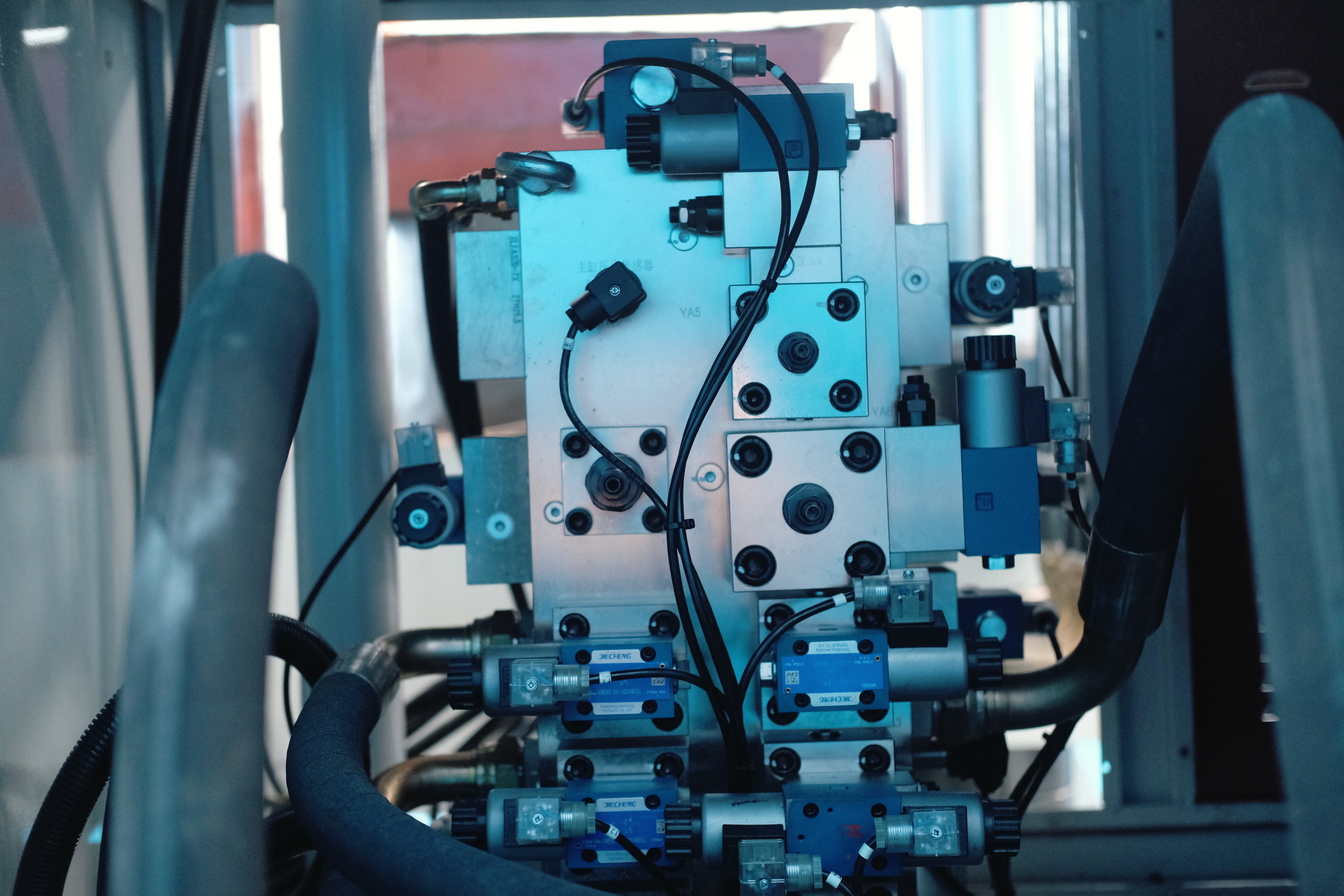

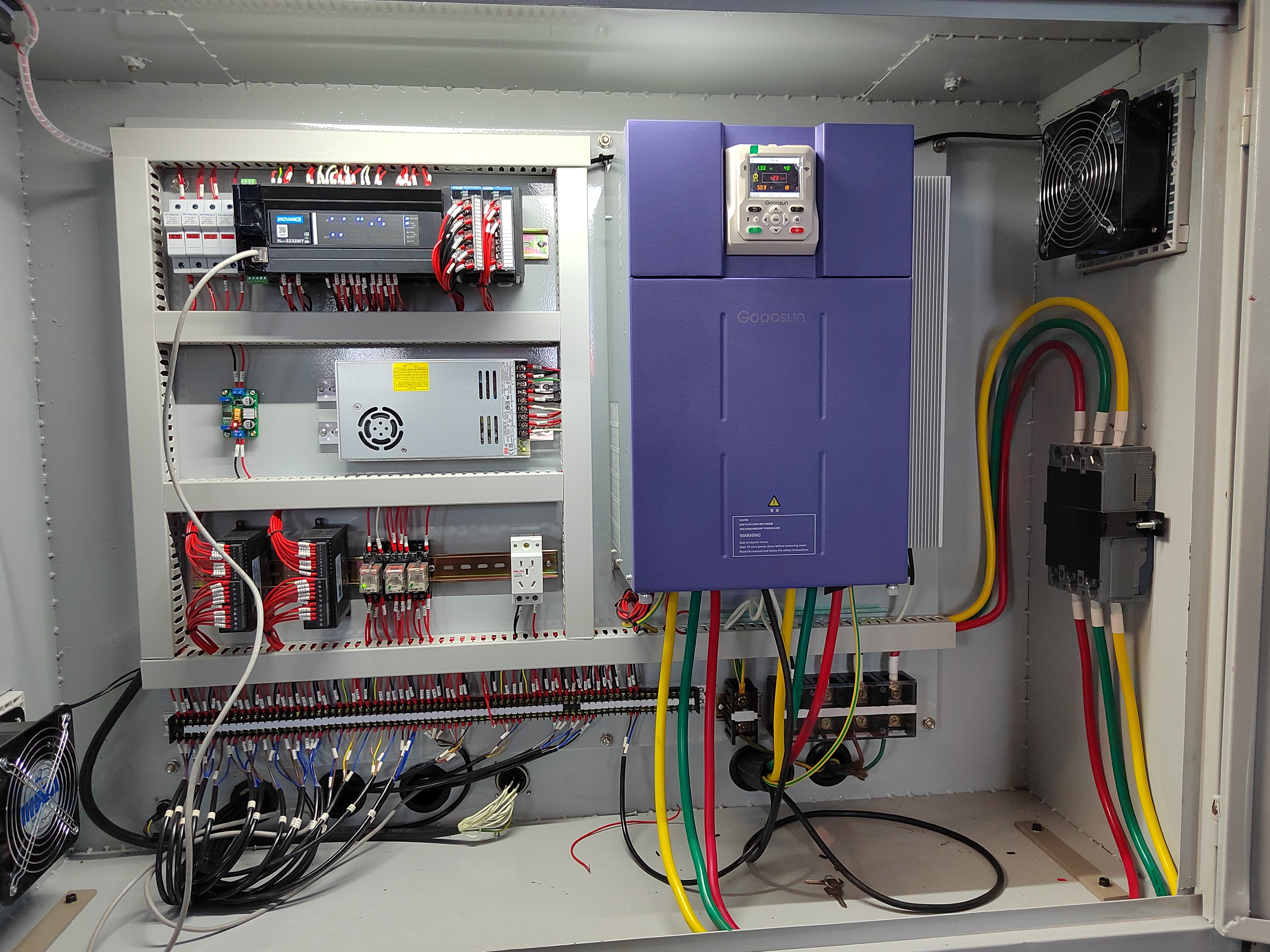

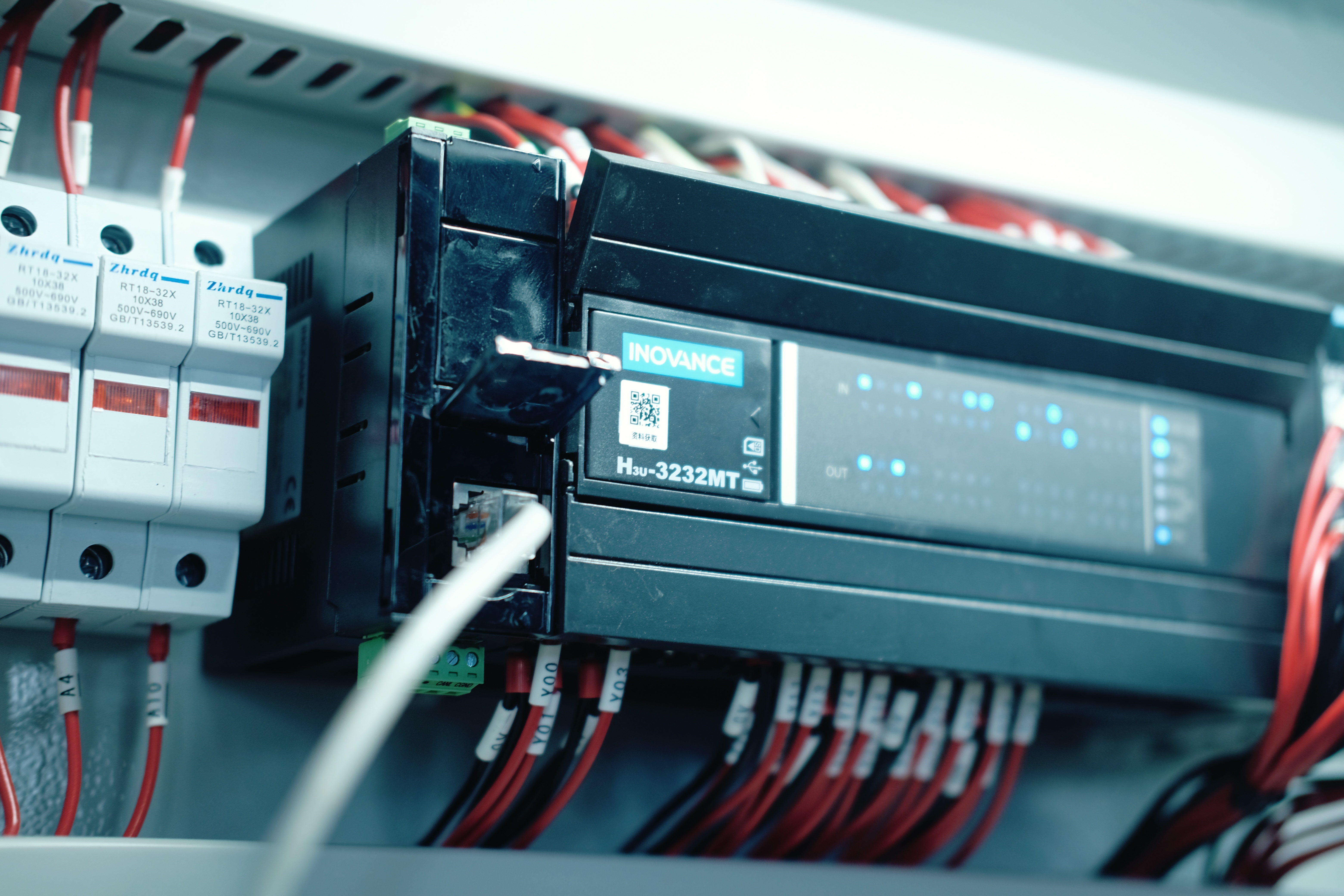

本機器適用于鋼材、可塑性材料的冷擠壓、熱擠壓,沖裁、落料、壓延、壓印、成型以及結構的校正工藝。機器具有獨立的液壓系統和電氣系統，并采用觸摸屏顯示位移與產品計數，觸摸屏+PLC+光柵尺組合，方便設置與控制滑塊上限、快轉慢、下限和保壓時間等?？蓪崿F(xiàn)調整及自動兩種工作方式。每種工作狀態均可實現定壓及定程兩種壓制方式。

This machine is suitable for cold extrusion, hot extrusion, punching, cutting, rolling, embossing, forming, and structural correction processes of steel and plastic materials. The machine has independent hydraulic and electrical systems, and uses a touch screen to display displacement and product counting. The combination of touch screen, PLC, and grating ruler makes it easy to set and control the upper limit, fast/slow rotation, lower limit, and holding time of the slider. It can achieve two working modes: adjustment and automatic. Each working state can achieve two pressing methods: constant pressure and constant stroke.

機器使用條件:
工作環境溫度:0-55℃ 相對濕度:不大于 85%
液壓油溫度5-50℃ 電源電壓:380V±5% 50HZ
海拔高度:不超過 1000m 液壓系統使用介質:46#抗磨液壓油

Machine usage conditions:
Working environment temperature: 0-55 ℃ Relative humidity: not exceeding 85%
Hydraulic oil temperature 5-50 ℃ Power supply voltage: 380V ± 5% 50HZ
Altitude: not exceeding 1000m. Hydraulic system medium: 46 # anti-wear hydraulic oil

狀態：

數量：



詢價加入詢價籃

型號：
YSM-1050CS
產品品牌：
萬達

產品描述

產品描述

二、機器參數和工藝動作Machine parameters and process actions:

2.1主要技術參數：

序號NO.	項目Item		單位Unit	參數值Parameter
1	主缸公稱力Master cylinder nominal force		KN	10000（可調）(Adjustable)
2	液體工作壓力 Maximum working pressure of liquid		MPa	25
3	工作滑塊行程Work slider stroke		mm	500（可調）(Adjustable)
4	開口高度Maximum opening height		mm	1000
5	滑塊速度 Slider speed	空載下行 no load down	mm/s	125（可調）(Adjustable)
		壓制pressing	mm/s	5-10（可調）(Adjustable)
		回程return	mm/s	125（可調）(Adjustable)
6	工作臺尺寸 Workbench size	左右L.R	mm	900（柱內） (Inside the column
6	工作臺尺寸 Workbench size	前后F.B	mm	960（邊緣）(Edge)
7	底缸力Bottom cylinder force		KN	500（可調）(Adjustable)

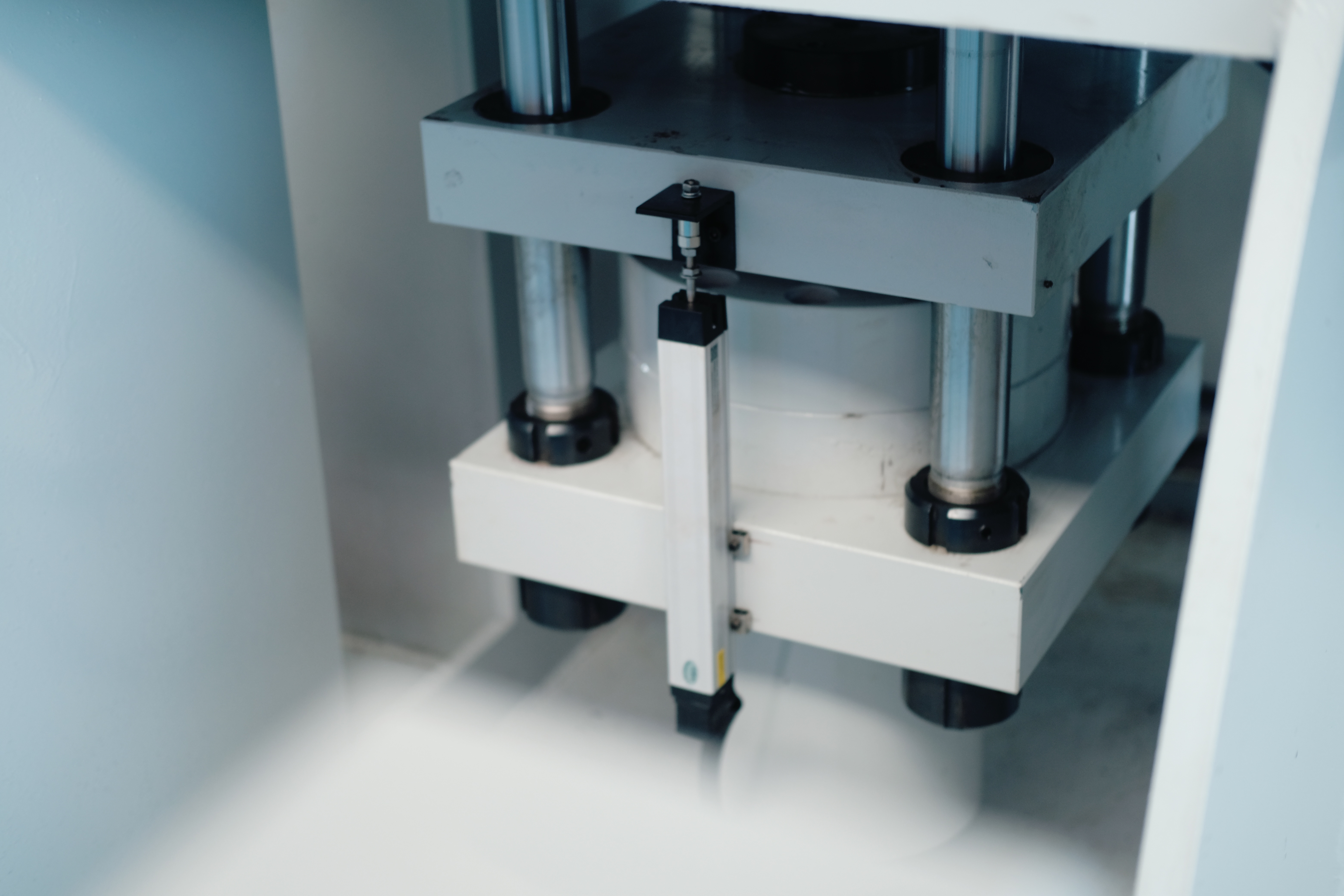

8	底缸行程Bottom cylinder stroke		mm	200（電子尺控制）(Electronic ruler control)
9	底缸速度 Bottom cylinder speed	頂出eject	mm/s	100（可調）(Adjustable)
9	底缸速度 Bottom cylinder speed	退回return	mm/s	120（可調）(Adjustable)

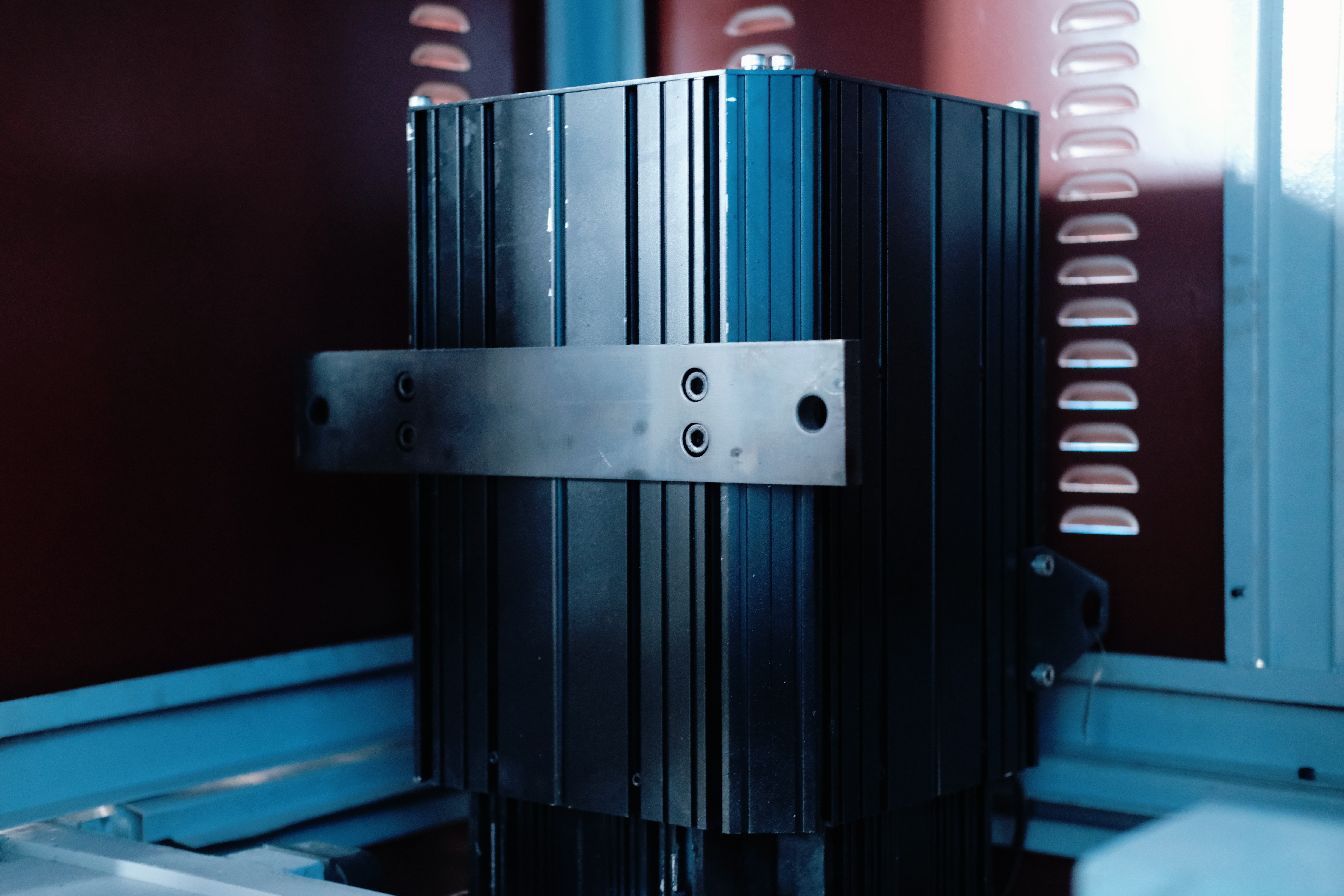

10	伺服電機功率Servo motor power		KW	40.9

2.2典型工藝動作:啟動電機一主缸快速下行一主缸慢速壓制一主缸回程一下頂料缸頂出一下料缸退回(電子尺控制)，完成一個工作循環。

2.2 Typical process actions: Start the motor——quickly descend the main cylinder——slowly press the main cylinder——return the main cylinder——push out the top material cylinder——and then retract the material cylinder (controlled by an electronic ruler)——completing a work cycle.

2.3、手動可單獨控制每個動作。

2.3Manual can be controlled separately.
